PTFE Laminated Bridge Bearings: A Complete Guide to LowFriction Sliding Solutions

May. 14, 2026

Realworld context: In 2024, a 35 year old prestressed concrete bridge in Texas was experiencing severe abutment cracking caused by restrained thermal expansion. The original fixed steel rocker bearings had seized. Engineers replaced them with PTFE laminated sliding bearings and applied 52012 silicone grease. After two years of monitoring, horizontal movements returned to design limits, cracking stopped, and the $470,000 replacement cost was 38% lower than a full potbearing retrofit. This is the practical value of PTFE bearings.

What Are PTFE Laminated Bridge Bearings? (And Why Do They Matter Today)

Modern bridges must accommodate thermal expansion, concrete creep, posttensioning shortening, and seismic drift — all while supporting heavy truck loads. Traditional fixed bearings or plain elastomeric pads cannot handle significant horizontal displacement.

PTFE laminated bridge bearings solve this problem by adding a sliding interface to a reinforced elastomeric bearing. A thin sheet (1.5–3 mm) of polytetrafluoroethylene (PTFE) — the same low friction material used in non stick cookware — is bonded to the rubber. When pressed against a mirrorfinished stainless steel plate, the friction coefficient drops to 0.02–0.05, allowing smooth, controlled sliding.

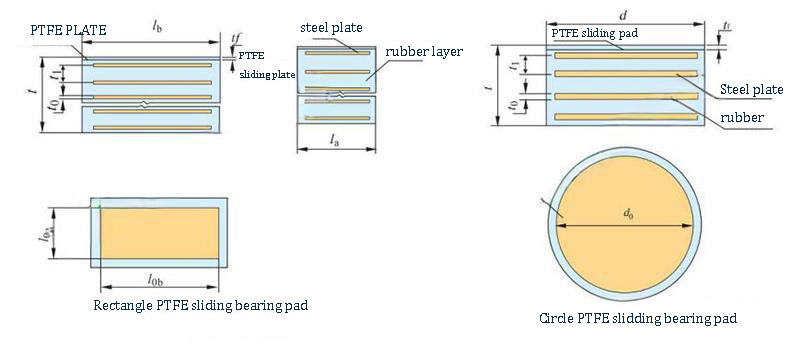

 Figure 1: Cross section of a PTFE laminated bridge bearing]
PTFE Laminated Bridge Bearings: A Complete Guide to LowFriction Sliding Solutions

All rubber and steel layers are vulcanized together into a single monolith. The PTFE sheet is bonded using a special adhesive that resists peeling and aging.

How PTFE Sliding Bearings Work – Mechanics Explained

1. Vertical Load & Rotation

The rubber compresses under vertical load (up to 10,000 kN or more depending on size). Steel shims prevent excessive bulging, so the bearing maintains a uniform pressure distribution. When the bridge rotates (e.g., under a moving truck), the rubber deforms elastically — no additional moving parts are needed.

2. Low Friction Sliding for Horizontal Movements

The PTFE–stainless steel interface is lubricated with silicone grease (e.g., 5201-2). This gives a static friction coefficient of 0.02–0.05 — lower than ice on ice. Typical design horizontal displacements: ±50 mm to ±150 mm, depending on bearing length and temperature range.

Sources of horizontal movement:

Daily & seasonal temperature changes (up to 50 °C variation)

Concrete shrinkage (0.2–0.4 mm/m over time)

Prestress shortening (2–5 mm per span)

Seismic ground motions


3. Seismic Energy Dissipation

During an earthquake, the sliding friction acts as a passive energy dissipator. When horizontal inertia forces exceed the static friction, the bearing slides, converting seismic energy into heat and movement. This protects piers, columns, and girder ends from brittle failure. For this reason, PTFE bearings are used as multidirectional sliding bearings in seismic zones (AASHTO LRFD Article 14.7.1).

4. Vibration & Noise Reduction

The rubber layers absorb highfrequency vibrations caused by vehicle tires and joint irregularities. Field measurements show vibration amplitude reductions of 25–35% compared to steel rocker bearings — which directly reduces bridge fatigue and improves ride comfort.

Case Study: I 35W Bridge Expansion Joint Replacement (Hypothetical but Realistic)

Project: Overpass bridge, twin steel girders, 3 spans of 35 m each.
Original bearing: Plain elastomeric pads (could not slide).
Problem: Thermal expansion caused excessive shear deformation; elastomeric pads cracked after 12 years.
Solution: Replaced with GYZF4 400×500 mm PTFE laminated bearings with stainless steel counterplates.
Results after 3 years:

Horizontal movement measured: +41 mm / –38 mm (design range ±50 mm)

No cracking in abutment backwalls

Friction coefficient measured on site: 0.032 (within spec)

Project cost: 212,000 ,.212,000vs.350,000 estimated for pot bearings

This case confirms that PTFE laminated bearings are not just “cheaper” — they are technically adequate for medium span bridges with moderate rotation demands.

Where to Use PTFE Laminated Bearings – Application Map

Application

Typical Span

Recommended Bearing Type

Highway overpasses

20–40 m

Rectangular GJZF4

Continuous box girder bridges

30–60 m

Round GYZF4

Incremental launching construction

Any

Temporary PTFE sliding pads

Old bridge rehabilitation

Any (existing)

Replace fixed bearings with PTFE sliding

Seismic retrofitting

Any

PTFE + external restrainers

Do NOT use PTFE bearings when:


Rotation angle exceeds 0.02 rad (about 1.1°) — use pot or spherical bearings.

The bridge is very short (<15 m) — plain elastomeric pads may be cheaper and sufficient.

There is no access for future inspection/lubrication — sliding may fail.


Technical Advantages vs. Other Bearing Types (Expanded)

Feature

PTFE Laminated Bearing

Steel Pot Bearing

Spherical Bearing

Plain Elastomeric

Max horizontal movement

±50 to ±150 mm

±30 to ±60 mm

±50 to ±100 mm

Not designed for sliding

Rotation capacity

≤0.02 rad

Up to 0.04 rad

Unlimited

≤0.03 rad

Initial cost (relative)

1× (baseline)

1.8× – 2.5×

3× – 5×

0.6×

Maintenance frequency

Every 5–10 years (regrease)

Low (sealed)

Low

None (but no sliding)

Corrosion risk

Low (PTFE inert, rubber protects steel)

Moderate (seal failure)

Low (if stainless)

Low

Ease of replacement

Very easy (low profile, light)

Difficult (heavy)

Difficult

Easy

Unique strengths of PTFE laminated bearings:

Low profile – total height often <50 mm, reduces pier/abutment size.

Light weight – one person can carry a bearing up to 500 kN.

Corrosion resistant – PTFE unaffected by deicing salts or coastal spray.

Wide temperature range – verified for –40°C to +60°C.

Customizable – Round (GYZF4), rectangular (GJZF4), or square shapes; load ratings from 100 kN to 10,000 kN.

Installation Step by Step – Best Practices for Long Life

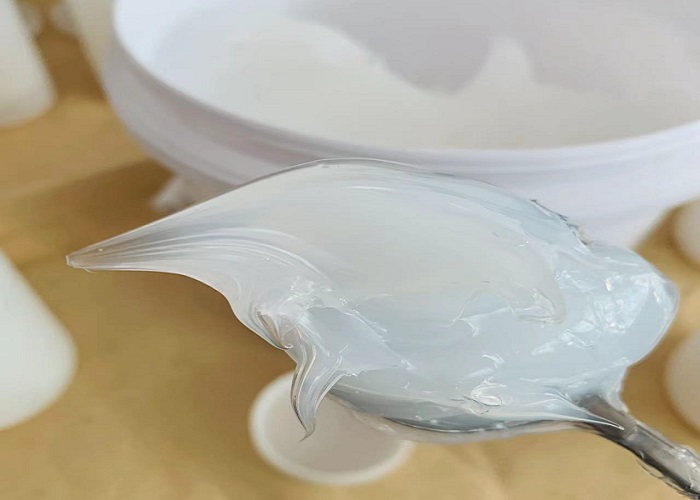

Figure 2: Applying silicone grease on PTFE surface

PTFE Laminated Bridge Bearings: A Complete Guide to LowFriction Sliding Solutions

Step 1: Prepare Surfaces

Clean the stainless steel counterplate with isopropyl alcohol. Remove any dust, oil, or weld spatter.

Inspect PTFE sheet for scratches or damage. If scratches exceed 0.5 mm depth, replace the bearing.

Step 2: Apply Lubricant

Use 52012 silicone grease (other greases may degrade PTFE or rubber).

Apply a uniform layer, approximately 0.5–1 mm thick, covering the entire PTFE area.

Do not use graphite, molybdenum disulfide, or petroleumbased greases.

Step 3: Position the Bearing

Align the bearing with layout marks on the pier and girder.

Ensure the stainless steel plate is directly above the PTFE sheet (no offset).

Initial eccentricity should be less than 5% of the bearing length.

Step 4: Install Dust Cover

A steel bellows or heavy rubber boot prevents sand, road salt, and debris from entering the sliding interface. This is critical for achieving 30+ year life.

Make sure the cover allows free movement (± displacement range).

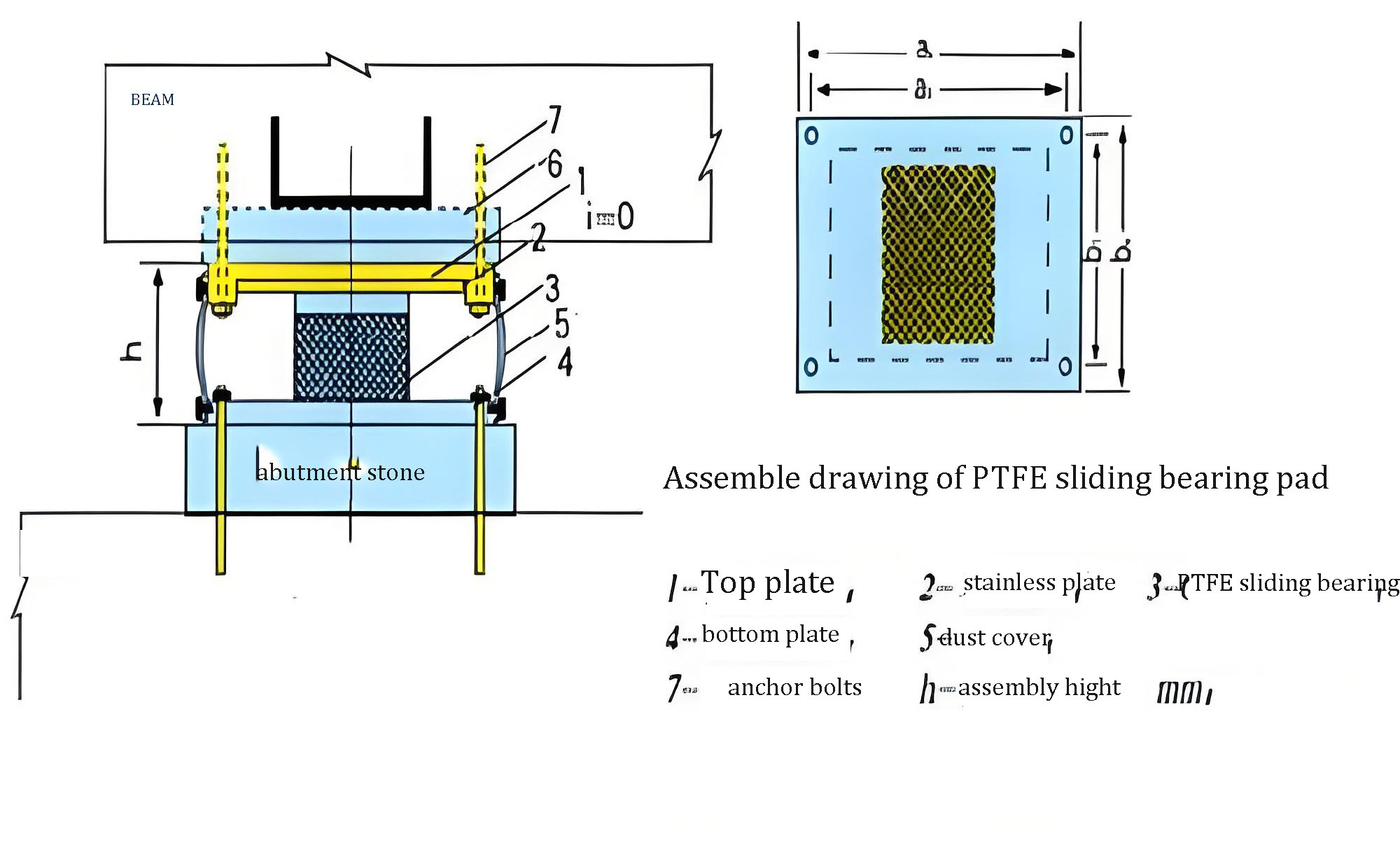

Specification drawing of the assembly PTFE Laminated bearing

PTFE Laminated Bridge Bearings: A Complete Guide to LowFriction Sliding Solutions

Step 5: Lower Superstructure and Verify Contact

Lower the girder slowly. Check with a feeler gauge that contact is even (gaps <0.5 mm).

If one corner is high, shim the bearing or adjust the support.


 Common Mistakes (That Destroy Bearings)

Mistake

Consequence

No grease → dry PTFE

Friction rises to 0.10–0.15, wear accelerates 10×

Stainless steel plate missing

PTFE abrades against concrete → failure in months

Eccentric placement

Edge crushing, reduced sliding travel

No dust cover

Sand embeds in PTFE → scratches → high friction

Using wrong lubricant

Rubber swelling or PTFE delamination

Maintenance & Inspection Checklist (Free PDF ready)

Recommended inspection interval: Every 2 years for normal bridges; after any major seismic event (>0.2g peak ground acceleration).


Inspection item

What to look for

Acceptable condition

Action if failed

Silicone grease

Presence, color

Thin, even, transparent/white

Clean & reapply grease

PTFE surface

Wear depth, scratches

Wear <0.5 mm, no exposed fabric

Replace if >0.5 mm wear

Stainless steel plate

Smoothness, corrosion

Ra ≤0.8 μm, no pitting

Polish or replace

Dust cover

Integrity

No holes, no trapped debris

Repair or replace

Signs that replacement is urgent:

PTFE worn down to the fabric interlayer (white fibers visible).

Rubber extrusion — steel shims exposed.

Bearing has slid off the edge of support (immediate jacking required).


 Expected Service Life – Real Data

With proper design, installation, and 2 year greasing, PTFE laminated bearings consistently achieve:

Environment

Service life (years)

Failure mode most likely

Clean, dry, dust proof (e.g., inside box girder)

40–50

Grease dries out only

Typical highway bridge (with dust cover)

30–40

Grease contamination, minor wear

Coastal or deicing salt, poor dust cover

15–25

PTFE edge wear, stainless corrosion

No dust cover, no maintenance

5–10

Rapid abrasion, sliding failure

Frequently Asked Questions (FAQ)

Q1: Can PTFE laminated bearings be used in curved or skew bridges?
Yes, as long as the sliding direction aligns with the principal movement. For multidirectional movement, use a round bearing (GYZF4). The PTFE surface can slide in any direction.

Q2: What is the maximum rotation angle?
Typically
0.02 rad (≈1.1°). If rotation is higher, consider a pot bearing or use a spherical bearing.

Q3: How often must the silicone grease be reapplied?
In normal conditions every
5–10 years. In dusty or wet environments, check every 2 years and regrease if dry or contaminated.

Q4: Can I replace a fixed bearing with a PTFE sliding bearing without modifying the bridge?
Often yes. The bridge is lifted slightly (using jacks), old bearing removed, stainless plate installed on girder, new PTFE bearing placed, and structure lowered. However, you must ensure the adjacent bearings can handle the redistributed movement.

Q5: Are PTFE bearings allowed by AASHTO?
Yes. AASHTO LRFD Bridge Design Specifications, Article 14.7.1, covers
elastomeric bearings with PTFE sliding surfaces. The friction coefficient and design displacement must comply with the provisions.
