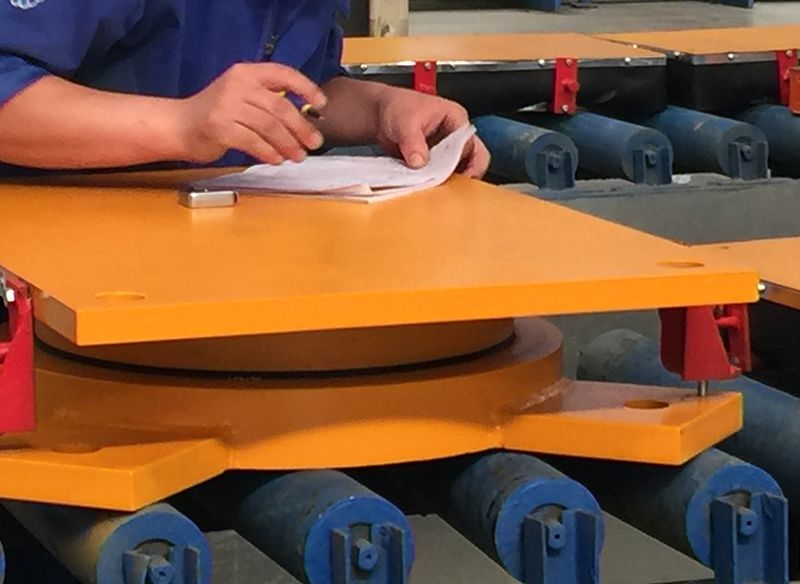

Highway bridge pot bearing (HPB)

Combined precision machined steel components with an elastomeric disc at the centre, highway bridge pot bearings is designed according to the projects' specific requirements. By accommodating the structure's relative displacement, these high performance highway seismic pot bearing transfer large vertical loads. No matter the bearings are fixed, unidirectional or multidirectional, they can transfer vertical and horizontal load combinations with transverse displacements.Resulting in larger load and movements on fewer piers.


With more than 20 years design, test and OEM order production experience, Yongxi provides various best quality highway bridge bearings , seismic resistance bridge bearing and highway bridge bearings for sale, which has gained high reputation from customers around the world. Sincerely hope to cooperate with you!


Product Detail

1. The vertical design bearing capacity of the bearing is 400-60000KN


2. The design angle is 0.02 rad


3. The horizontal design bearing capacity of the bearing, the horizontal design bearing capacity of the fixed bearing and the one-way sliding bearing in the non sliding direction is 10% of the vertical design bearing capacity of the bearing


4. Friction coefficient of bearing: the friction coefficient of normal temperature movable bearing is 0.030, and that of cold resistant movable bearing is 0.060


5. Design displacement: the displacement design level of the main displacement direction of sliding bearing is + / - 50 mm, + / - 100 mm, + / - 150 mm, + / - 200 mm, + / - 250 mm


6. Structure

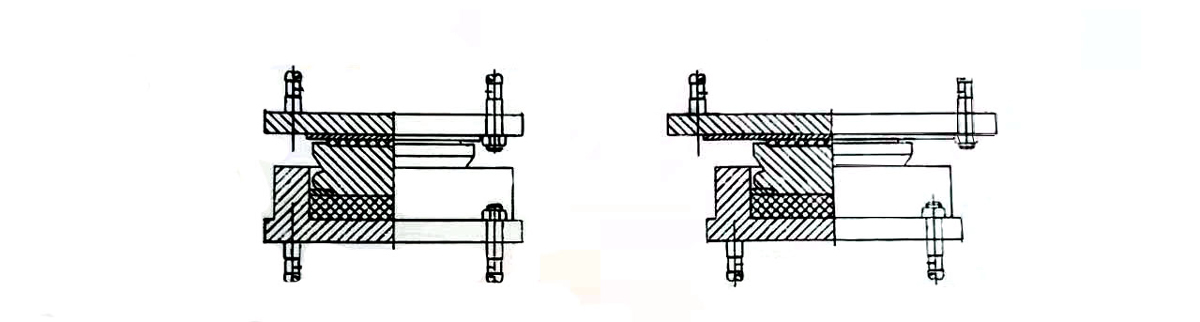

Bidirectional moveable pot bearing

Highway Bridge Pot Bearing

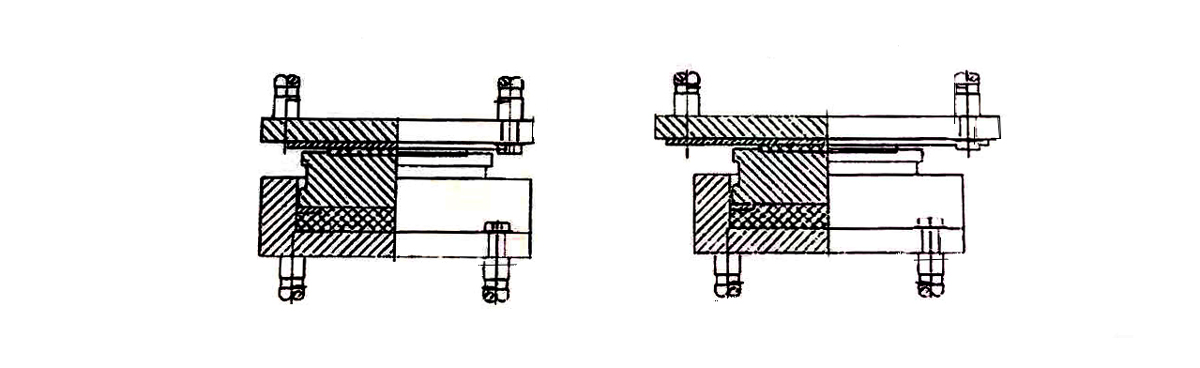

Guided moveable pot bearing

Highway Bridge Pot Bearing

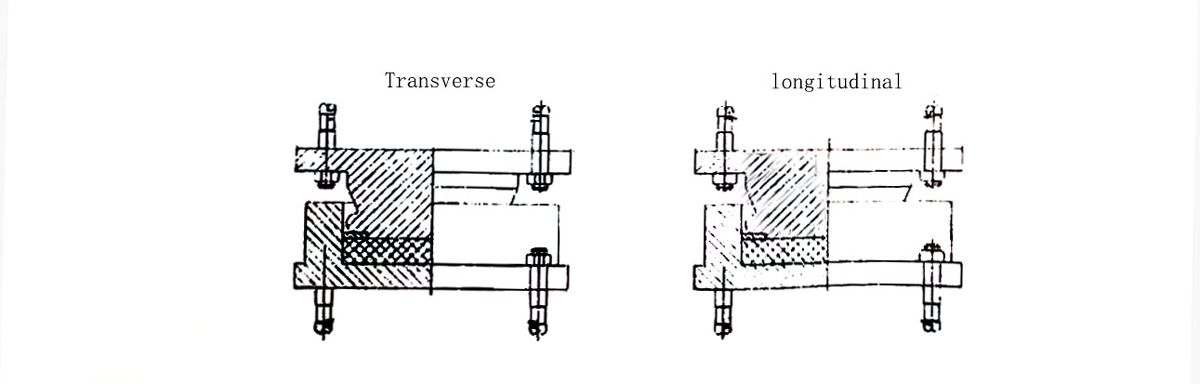

Fixed type pot bearing

Highway Bridge Pot Bearing

7. Applicable temperature range: normal temperature type - 25oC - + 60oC, cold resistant type - 40oC - + 60oC



8. Highway Bridge Pot Bearing Advantages

1. The plank sliding of stainless steel plate and poly four ethylene moulded plate is used as the slip surface of the bearing. It has low friction coefficient, large bearing capacity, small deformation, wear resistance and corrosion resistance.

2. The use of sealed rubber improves the bearing capacity of the bearing and the life of the rubber, and more importantly, the bearing has flexible rotation performance and cushioning performance.

3. The rubber bearing is simple in structure, light in weight and cheap in price. It has obvious economic effect.

4. The low building height of the rubber bearing is very beneficial to the bridge design.
