Exploring the Significance and Functionality of Bridge Rubber Bearing Pads

Aug. 18, 2023

Bridges stand as vital infrastructure, connecting communities and facilitating transportation networks. Behind the strength and durability of these structures lies a complex system of components, each contributing to their stability and safety. Among these components, bridge rubber bearing pads play a pivotal role in absorbing forces, reducing vibrations, and ensuring the longevity of bridge structures. In this article, we delve into the significance, functionality, types, and applications of bridge rubber bearing pads in the world of civil engineering.


The Significance of Bridge Rubber Bearing Pads


Bridge rubber bearing pads serve as essential elements that allow bridges to accommodate movements caused by factors like traffic loads, temperature changes, and seismic activities. These pads act as buffers between bridge components, mitigating stresses and ensuring the structural integrity of the bridge over its lifespan. Their ability to absorb and distribute forces plays a crucial role in preventing damage and enhancing safety.


Functionality and Benefits


1. Load Distribution:

Rubber bearing pads distribute the loads from the superstructure (the visible portion of the bridge) to the substructure (the supports and foundations), preventing localized stress concentration and ensuring even distribution.


2. Vibration Isolation:

Rubber's inherent properties allow the pads to dampen vibrations caused by traffic and environmental factors. This reduction in vibrations contributes to passenger comfort and limits wear and tear on the bridge.


3. Thermal Expansion and Contraction:

Bridges undergo thermal expansion and contraction due to temperature variations. Rubber bearing pads accommodate these movements, preventing damage and maintaining structural integrity.


4. Seismic Protection:

In seismic-prone regions, bridge rubber bearing pads help absorb and dissipate the energy generated by earthquakes, safeguarding the bridge and reducing the risk of collapse.


Types of Bridge Rubber Bearing Pads


1. Laminated Rubber Bearing Pads:

These pads consist of multiple layers of rubber bonded together with steel plates. They offer a balance between flexibility and load-bearing capacity, making them suitable for various bridge types.


2. Plain Elastomeric Bearing Pads:

Made from elastomeric materials, these pads provide excellent load distribution and vibration isolation. They are commonly used in simple-span bridges.

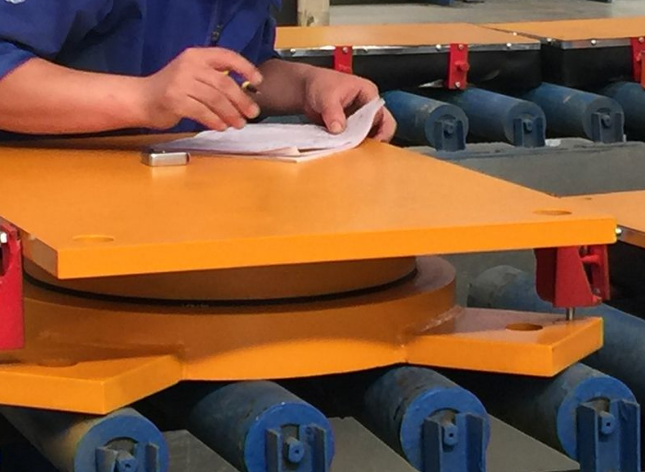

3. Pot Bearings:

Pot bearings consist of a steel pot encasing a rubber pad. They offer high load-bearing capacity and accommodate both vertical and horizontal movements, making them ideal for large-span bridges.


Bridge Rubber Bearing Pads



1. Highway Bridges:

Bridge rubber bearing pads are widely used in highway bridges to accommodate the dynamic loads generated by vehicular traffic. They help extend the lifespan of the bridge and ensure passenger safety.


2. Railway Bridges:

The flexibility and load distribution capabilities of rubber bearing pads make them suitable for railway bridges, where heavy train loads and dynamic forces are present.


3. Pedestrian Bridges:

Even pedestrian bridges benefit from the use of rubber bearing pads, as they absorb vibrations caused by foot traffic and ensure a comfortable crossing experience.


4. Cable-Stayed and Suspension Bridges:

These complex bridge types utilize bridge rubber bearing pads to accommodate both vertical and horizontal movements while maintaining stability.


Maintenance and Lifespan


Proper maintenance of bridge rubber bearing pads is essential to ensure their effectiveness and extend the lifespan of the bridge. Regular inspections, cleaning, and replacement of worn-out pads are crucial to maintaining the structural integrity of the bridge and preventing potential hazards.


Addressing Common Questions


Do Bridge Rubber Bearing Pads Require Regular Inspection?


Yes, regular inspections are necessary to identify any signs of wear, deformation, or deterioration in the rubber bearing pads. Timely replacements can prevent more significant issues.


Can Bridge Rubber Bearing Pads Withstand Harsh Environmental Conditions?


Yes, bridge rubber bearing pads are designed to withstand various environmental conditions, including temperature extremes, moisture, and UV radiation. Proper material selection and maintenance ensure their longevity.


Are There Specific Guidelines for Choosing Bridge Rubber Bearing Pads?


Yes, the choice of bridge rubber bearing pads depends on factors such as the type of bridge, load requirements, expected movements, and environmental conditions. Consulting with structural engineers is crucial for making the right selection.




Bridge rubber bearing pads may seem inconspicuous, but their role in ensuring the safety, stability, and longevity of bridge structures is invaluable. From distributing loads and absorbing vibrations to accommodating movements and protecting against seismic forces, these pads stand as essential components in the world of civil engineering. As bridges continue to connect communities and facilitate transportation networks, the reliable performance of bridge rubber bearing pads remains a cornerstone of their functionality and safety.

If you want to know more information about Bridge rubber bearing pads, please contact us. We will provide professional answers.
